Pre-fill URL Parameters allow users to pre-fill a work request or work task with specified details. Users can utilize Pre-fill URLs to provide direct links to creating work requests for specific Buildings, Resources, and Equipment. Additionally, users can create a Pre-fill URL to Start Downtime for equipment or provide a link to Kiosk Mode.

Kiosk Mode allows users to submit requests without having to log in to FMX. Further information regarding Kiosk Mode can be found here.

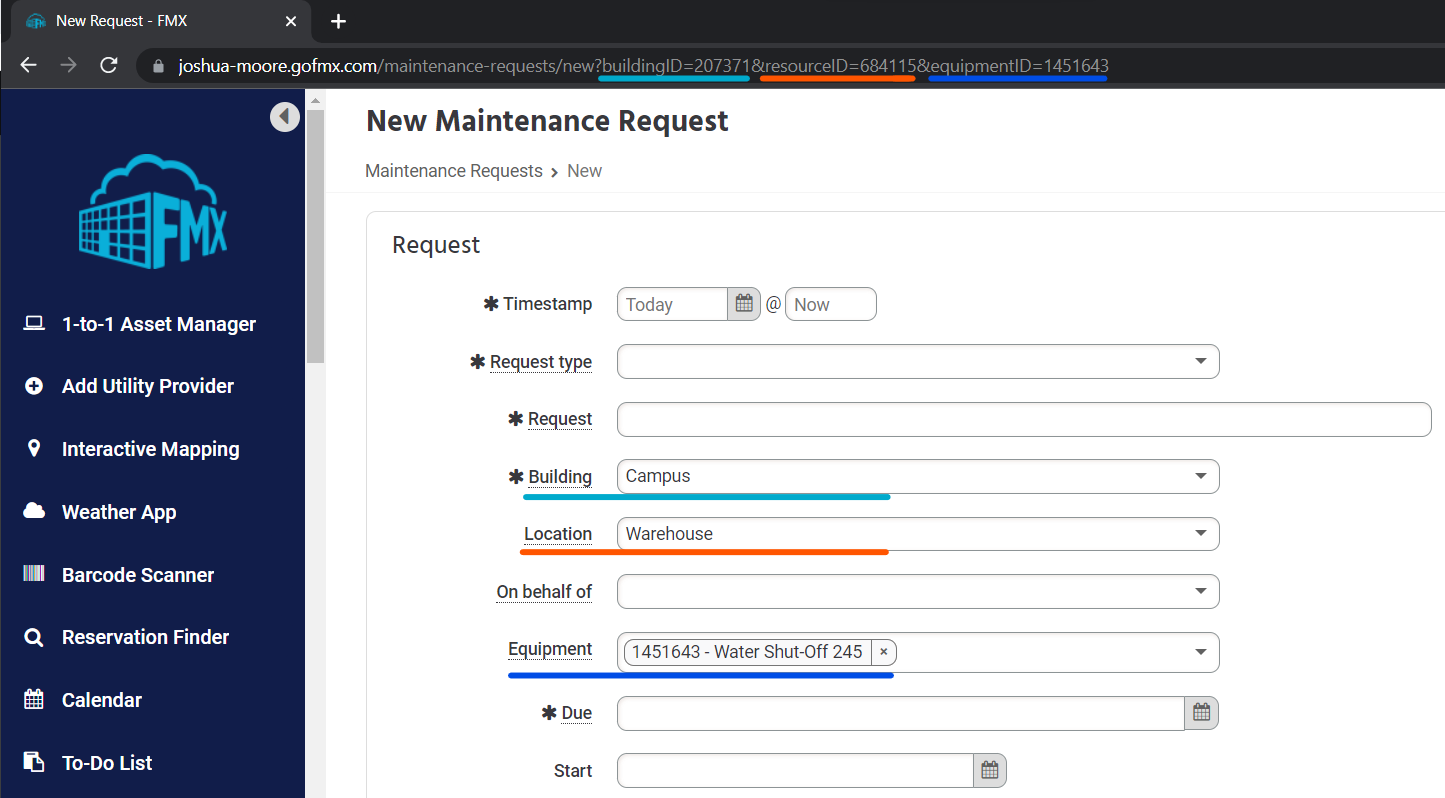

To create a Pre-fill URL, add "?" followed by the field to the end of your site's URL. Add "&" between fields if using multiple. An example of a Pre-fill URL for the Maintenance Request module would appear as follows:

      hostname.gofmx.com/maintenance-requests/new?buildingID=207371&resourceID=684115&equipmentID=1451643


Available Parameters

Field
 Parameter
 Input
 Work Requests
 Work Tasks
Building
 buildingID=
 Number
 mceclip3.png mceclip8.png
Resource / Location
 resourceID=
 Number
 mceclip4.png mceclip9.png
Equipment
 equipmentID=
 Number
 mceclip5.png mceclip10.png
Start Downtime
 startDowntime=
 TRUE
Kiosk Mode
 kiosk=
TRUE		 mceclip7.png


Parameter IDs
Users can access their site's Building, Resource, and Equipment Parameter IDs from exported data files in the corresponding modules.

On the Grid View page of the module, select Export from the top right corner. In the Export drop down, select CSV or Excel under the Raw Data portion. Please access the exported file in your browser's downloaded files.


Parameter IDs are available in the ID column of the exported file.
